Lightweight Portable Hydraulic Stone Splitter Handheld Concrete Splitter Machine

Ask Lasest Price
Brand Name :	Zondar
Model Number :	ZDRP90
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000sets/years
Delivery Time :	7-15workday

Add to Cart

Product Details
Company Profile

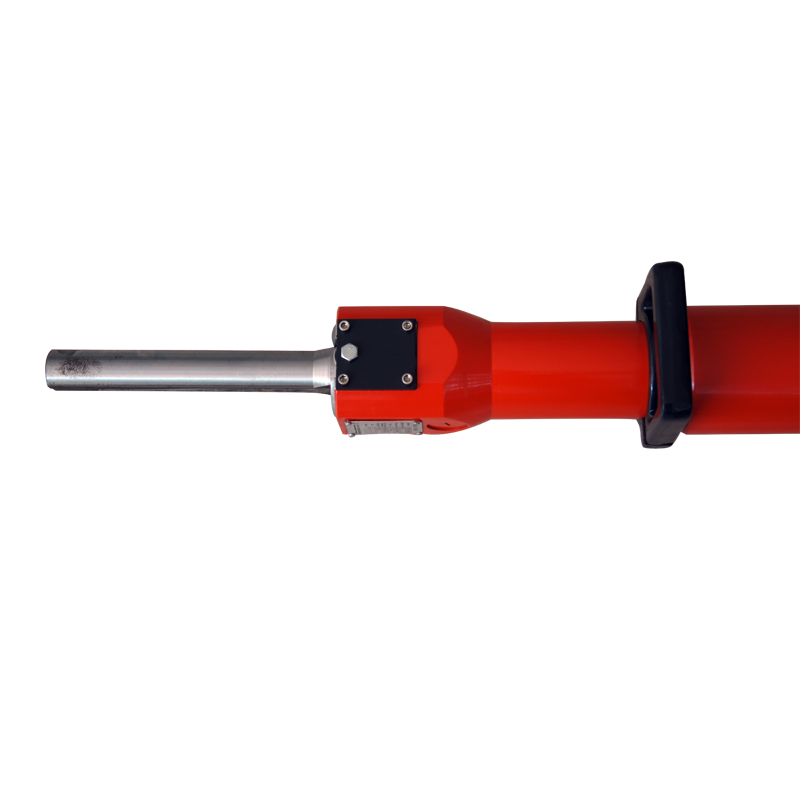

Lightweight Portable Hydraulic Stone Splitter Handheld Concrete Splitter Machine

Light Weight Hydraulic Stone Splitter Machine Small Size Hydraulic
Handheld Splitter

The splitter can be used for the breaking of reinforced concrete
structures,the splitting and the crushing of rocks,the minning of
the materials in quarries, the overhaul of electrolytic cells and
other kilns.

Product features:

1. High splitting power

2.no vibration

3,no impact

4,no noise

Performance Technology Parameter Configuration

Model	ZDL-150	ZDL-250	ZDL-350	ZDL-450	ZDL-600
Bottom Hole Size(mm)	38	42	46	50	60
Drilling Depth(mm)	22	37	45	55	75
Cylinder Bore(mm)	70	80	90	100	130
Piston Stroke(mm)	150	198	198	260	380
Wedge Length(mm)	150	250	350	450	600
Crack Width(mm)	10-20	15-20	15-20	15-20	20-25
Splitting Time(S)	15-30	15-30	15-30	15-30	20-38
Total Length of Gun Body(mm)	800	1050	1150	1350	1650
Single Gun Weight(Kg)	22	30	35	45	75
