Single Circuit 13HP Portable Hydraulic Power Unit Hydraulic Flow 1x30Lpm

Ask Lasest Price
Brand Name :	Zondar
Model Number :	ZD13-30
Certification :	CE
Payment Terms :	L/C
Supply Ability :	5000sets/years
Delivery Time :	7-15workday

Add to Cart

Product Details
Company Profile

Single Circuit 13HP Portable Hydraulic Power Unit Hydraulic Flow 1x30Lpm

Petrol Portable Hydraulic Machine Power Station

Product descripition:

Zondar13-30 Hydraulic power station. It is widely used in work scenarios such as earthquakes, waters, road repairs, and market maintenance.

Product features:

1.The equipment adopts imported engine, purely independent design and strict reliability test to ensure the stable performance of the machine.

2. The new shock absorption design cuts off the high-frequency vibration of the gasoline engine at the source, greatly reducing the risk of cracking of the fuel tank and frame.

3.The whole series of electronic control and integrated main valve block design can realize the on and off of hydraulic oil with one button, which is simple and quick to operate.

4.With internal merging function, the flow can reach 30Lpm after merging.

performance technology parameter configuration

Model	ZD13-30

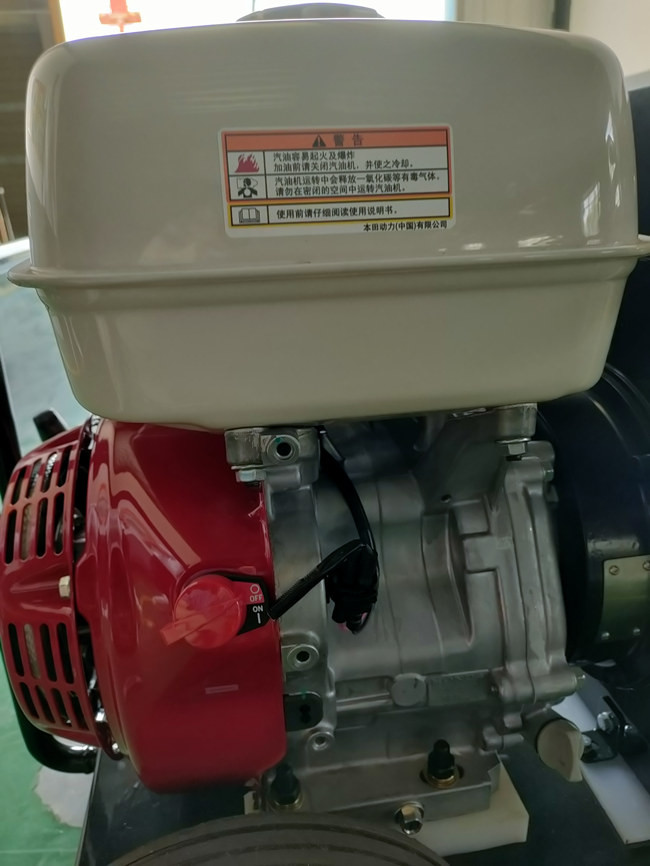

Gasoline engine	Honda GX390
Diesel engine	Optional
Maximum presure of the hydraulic system/Mpa	16
Hydraulic folw/Lpm	1×30
Dimension/mm	740×560×710
Bare machine weight(kg)	92
Hydraulic tank capacity(L)	14
Fuel tank volume(L)	6.5
Real-time monitoring system	/
Starting mode	Manual starting
Hydraulic circuit and Controller mode	Single circuit/manual starting

Single Circuit 13HP Portable Hydraulic Power Unit Hydraulic Flow 1x30Lpm
